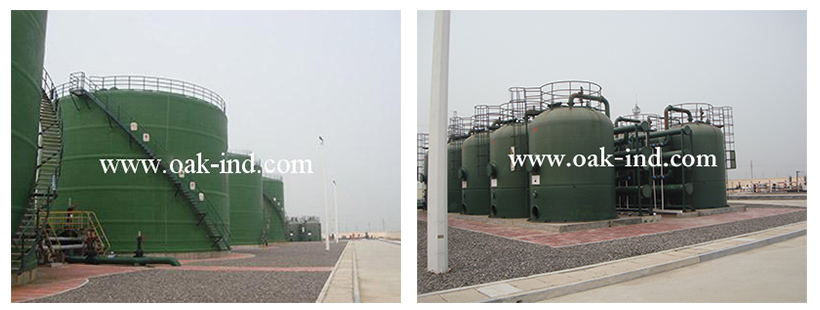

Mainly used as the container of acid, alkali, salt storage etc. for storage, also used as water tank, food container or fermenter.

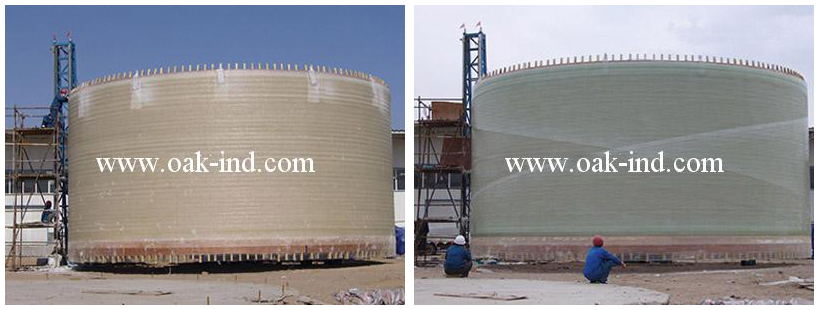

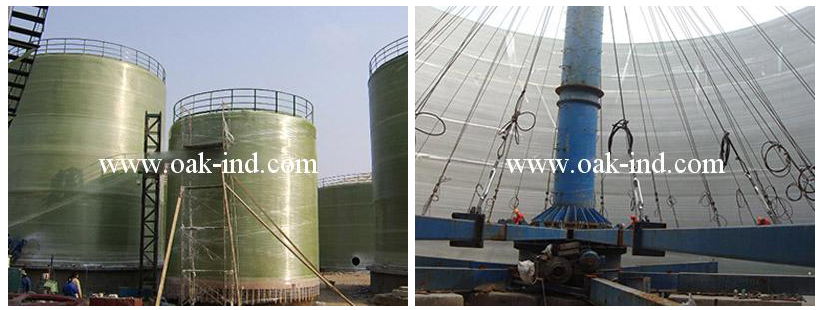

With double fiberglass roving feeder for helical-winding and hoop-winding, this makes the container with excellent physical property and good corrosion resistance, easy installation and no need for maintenance, flexible and good lamination design.

Main Technical Parameters

Diameter range of the tank: Φ4000-Φ25000mm

Height of the tank: 6000-12000mm

winding angle: 45°~90°

Bandage width of fiberglass roving: ≤200mm

Speed of fiber drawing: ≤110m/min

Main spindle rotation speed: 6.7 rpm.

Total equipment power: 55 ± 5kW.
Mode of winding: helical or hoop
Mode of control: manual, semi-automatic, automatic

Floor space for the winding machine: length 35000mm, width 35000mm.

The winding machine is suitable for the tank size:

Ø 4000-10000mm, height 12000mm

Ø 11000-16000mm, height 10000mm

Ø 17000-20000mm, height 8000mm

Ø 21000-25000mm, height 6000mm.
